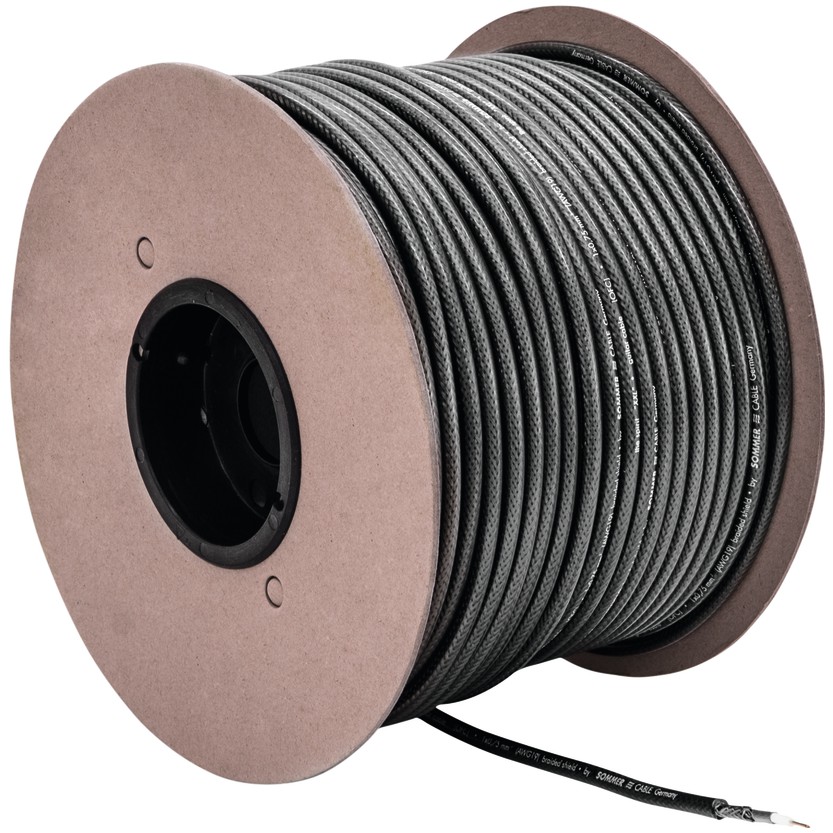

Sommer Cable The Spirit XXL, nástrojový kabel, černý, 100m
doprava zdarma
skladem
Smoke-colored noble version. Sommer Cable SC-SPIRIT XXL cable from German production. Enormously powerful and clear sound image with bass, guitar and keyboard. Dual shielding by a combination of a copper mesh screen plus conductive carbon screen. Low-loss transmission due to low capacitance and large wire gauge. Very flexible and easy to reel because of its fine single litz design. Extremely durable and sturdy due to a special high-quality PVC jacket compound. High quality guitar and bass cable for studio and stage. Unbalanced cable for keyboards, samplers, mixing desks etc.. Connection lead for CD/DVD/BluRay player/recorder. Made in Europe.
Technické parametry
Technické parametry
| Name | SC-Spirit XXL |
| Properties | Analog |
| Properties | OFC oxygen free copper |
| Application area | Stage / live |
| Application area | Studio / Broadcast |
| Application area | Mobile outdoor / indoor |
| Application | Instrument Cable |
| Colour | black |
| Colour | transparent |
| Colour | brown |
| Colour detailed | transparent |
| Colour detailed | brown |
| Colour detailed | black |
| Signal transmission | asymmetrical |
| Construction | LI2Y(LS)CY 1x0.75 mm |
| Jacket material | PVC |
| Jacket material (audio) | transp. PVC |
| Jacket O [mm] | 6.80 |
| Number of Channels (audio) | 1 |
| Inner conductor (audio) | 1 |
| Inner conductor (audio) [mm] | 0.75 |
| Inner conductor O (audio) [mm] | 0.98 |
| AWG (audio) | 18 |
| Shielding | Copper spiral tin-plated + semiconductor |
| Copper strands (audio) | 42 |
| Copper strand O (audio) [mm] | 0.15 |
| Conductor insulation material | Foam / Skin-PE |
| Conductor insulation O [mm] | 3.10 |
| Weight per 1 m [g] | 52 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0.26 |
| Style variant | round |
| Shielding factor [%] | 100 |
| Packing | 100 m spool |
| Temperature min. [C] | -30 |
| Temperature max. [C] | 70 |
| Width [mm] | 6.8 |
| Height [mm] | 6.8 |
| Capac. cond./shield. per 1 m (audio) [pF] | 86 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] | 26.2128 |
| Insulation resist. per 1 km [Gohms] | 0.05 |
| Insulation resist. per 1000 feet [Gohms] | 0.0152 |
| Insulation resist. per 1 km (audio) [Gohms] | 0.05 |
| Insulation resist. per 1000 feet (audio) [Gohms] | 0.0152 |
| Conductor resistance per 1 km [ohms] | 25 |
| Conductor resistance per 1000 ft. [ohms] | 7.62 |
| Cable length | 100 m |
| Color | Brown |
| Plug A | 1 x No connector/cable only |
| Plug B | 1 x No connector/cable only |
| Velikost balení | 23 x 23 x 16 cm |
| Hmotnost balení | 5.4 kg |
