Úvod »KABELY»Kabely na metráž » Kabel DMX + Power kabel, 1x2x0,25 + 3G1,5, role 100m

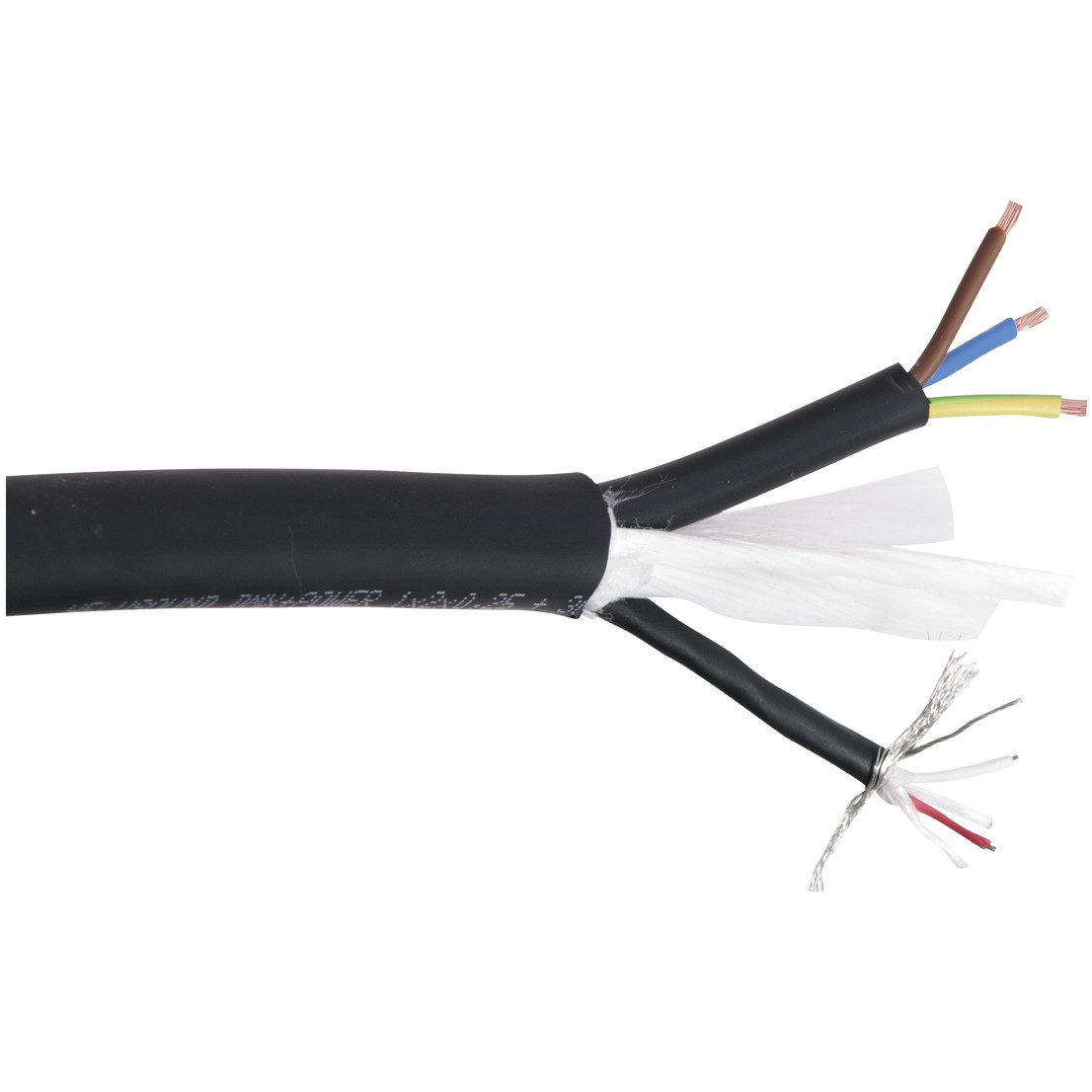

Kabel DMX + Power kabel, 1x2x0,25 + 3G1,5, role 100m
doprava zdarma
skladem
The HELUSOUND? DMX+POWER hybrid cable combines a shielded light control wire and the power supply wire. The DMX-cable, which is shielded by a tin-coated copper braiding is perfectly suited for the control of light systems and mixing boards (110 Ohm characteristic intrinsic impedance). It highlights a soft PVC insulation and it is qualified for the use at indoor and outdoor installations. The DMX cable can also be used for the transmission of audio signals such as a microphone wire or as a power supply wire for active loudspeaker systems.
High quality power DMX cableParallel control for lighting boards through one cable via power line and DMX signal
Very flexible and enormously tread-resistant
Very good pairwise shielding of the DMX lines
Control line for DMX lighting consoles (wave impedance of 110 ohms)
Analogue + digital audio multipair with power supply
Technické parametry
Technické parametry
| Cable construction | 3 x 1,5 mm Power cable |
| Cable length | 100 m |
| Length | 100 m |
| Weight | 21,10 kg |
| Velikost balení | 48 x 48 x 19 cm |
| Hmotnost balení | 21.2 kg |
